Advantages of the TrayCell 2.0

High quality UV / VIS spectroscopy accessories

What makes the TrayCell 2.0 so special?

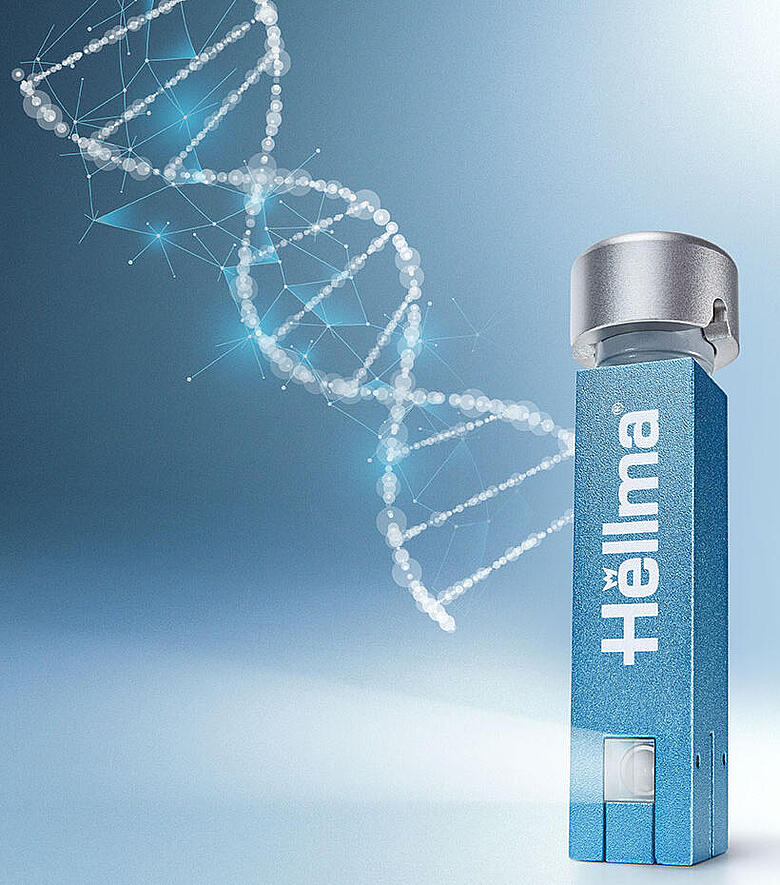

The TrayCell 2.0 micro volume measuring cell revolutionizes the UV / Vis analysis of very small volumes (0.7 μl - 10 μl). It is compatible with almost all common spectrophotometers, making the TrayCell 2.0 ideal for measurements of DNA, RNA and proteins.

The optics of the measuring cell and the newly developed measuring head with PTFE coating can be cleaned quickly and easily, even while the TrayCell 2.0 remains in the cuvette holder for subsequent measurements. This allows many handling advantages and guarantees a consistent positioning of the aperture in the measuring beam and thus no deviations compared to the reference measurement.

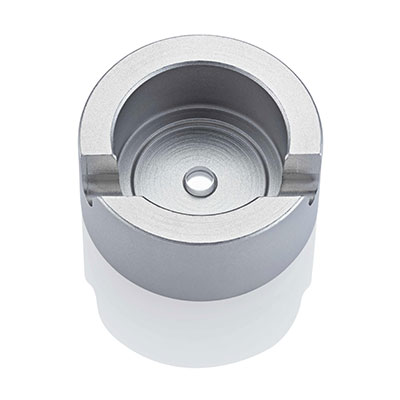

Extra dilutions of the sample are unnecessary, due to the easy switching to different path lengths (PL).  To change the path length, just change the cap.

The following dilutions, compared to a 10 mm cuvette, are possible with the TrayCell caps: 1:5 (PL 2 mm), 1:10 (PL 1 mm), 1:50 (PL 0.2 mm), 1: 100 (PL 0.1 mm).

High-tech on the smallest scale - with a patented operating principle

The TrayCell 2.0 comprises a fiber-optic measurement cell and a cap with integrated mirror. One drop (0.7 μl-10 μl) of the sample is pipetted onto the measuring window and then the corresponding cap with the selected path length is placed on top.

The light is guided via prism and optical fiber through the sample, reflected in the mirror and then guided via optical fiber and prism out of the TrayCell 2.0 to the detector.

The precisely defined spacing between the window and the mirror inside the cap ensures a precise and permanently consistent optical path length. The TrayCell 2.0 design makes expensive calibrations and readjustments unnecessary .

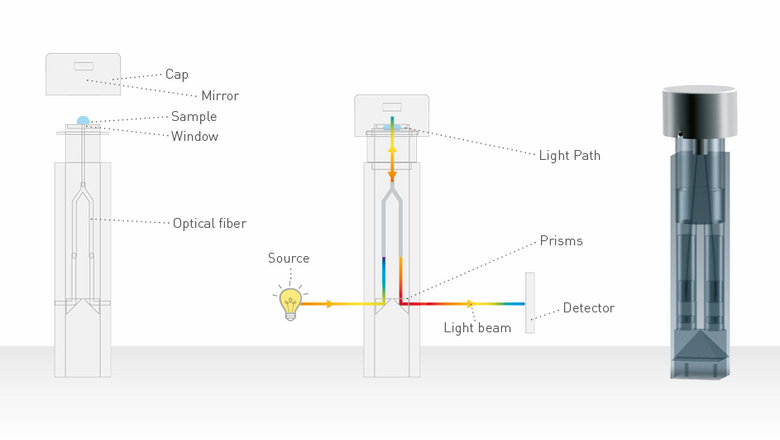

Representation of the measuring and functional principle of the TrayCell 2.0



Here you can find more information about technical data, product details and accessories of the TrayCell 2.0:
