Safe Energy for the Future - NIR Inline Analysis of Liquefied Gas on Delivery

Compact storage of large amounts of energy

Liquefied petroleum gas (LPG) refers to liquified gas, consisting primarily of the hydrocarbons propane and butane. Similar to methane-based liquefied natural gas (LNG), LPG is being accorded an increasingly important role in energy supply in Germany and worldwide as a bridging technology.

LPG is obtained during the extraction of natural gas and crude oil, but also while processing crude oil in refineries. It becomes liquid through compression and thereby reduces its volume to a fraction of its original gas volume. The term LPG refers to both a mixture of different hydrocarbons but also the single gases. The specific application described here involves the analysis of the pure hydrocarbons propane and butane.

Versatile areas of application and good environmental performance

Because of their low-pollutant and CO2-reduced combustion, which produces hardly any soot or particulate matter, liquefied gases are often regarded as promising energy sources for the future. The gases are used in households for heating, cooking, and as fuel, but also in the petrochemical industry and in agriculture.

To rule out the possibility of mix-ups when loading the two gases butane and propane from the gas tankers into the liquefied gas tank farms at the port terminals, it is necessary to re-identify the gases in the pipelines.

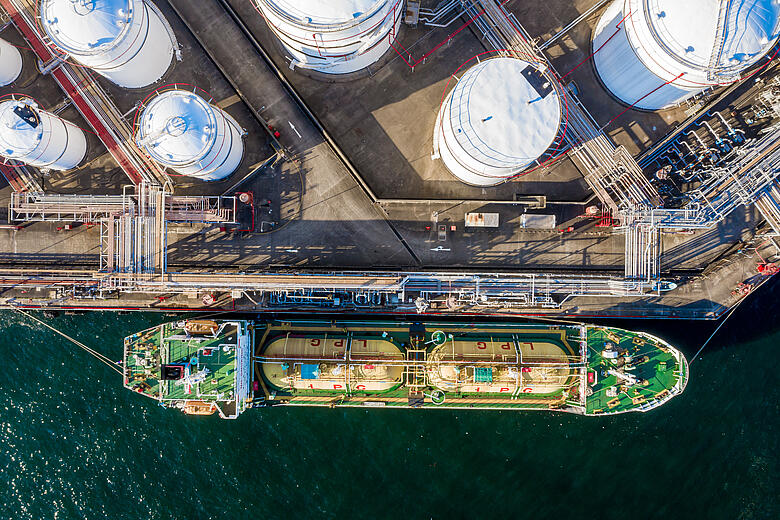

Liquid gas delivery at the terminal

The Challenge

Adverse conditions at the measurement site

Liquified gas is under high pressure when transported and pumped into the pipelines. The gas is highly flammable. The measurement technology employed must therefore comply with the regulations relating to use in a potentially explosive environment.


Precise determination of liquefied gases during delivery under adverse conditions at the measurement location


Area of Application

Inline-Measurement using NIR-spectroscopy for the analysis of liquefied natural gases

Scope of Application

Determination of different hydrocarbons on arrival at LNG/LPG terminals


  • NIR-Spectroscopy
  • NIR-Measurement


  • NIR-Spectroscopy

  • Inline-Measurement

  • Transmission Measurement


  • Precise quality determination of gases
  • Reliable measurement results
  • High process reliability

The Application

Spectroscopic determination of the gases in the pipelines

A precise qualitative analysis of the liquid gas in the lines is possible using spectroscopic inline measurement technology. Butane and propane are spectroscopically detectable. Measurement in the IR range or with Raman technology would show particularly well differentiable signals due to the high sensitivity and excellent selectivity. However, these methods have disadvantages in the process environment, especially regarding the potentially explosive environment. Currently available IR or Raman spectrometers can fail to meet the ATEX requirements needed for measurements under these conditions.

The Solution

Inline analysis in the NIR range

The two gases butane and propane can also be spectroscopically differentiated in the NIR range. Measurements in this wavelength range have the advantage that robust measurement technology with fiber optics can be used. The electronics can thus be housed at a safe distance from the potentially explosive area.

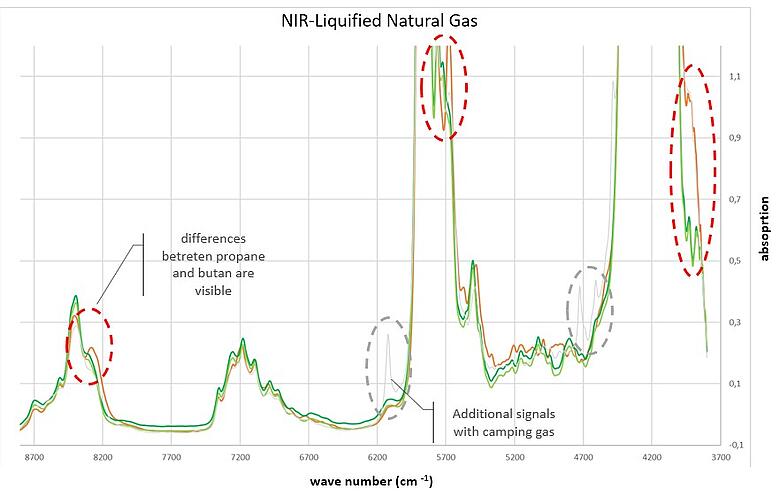

NIR spectra of the hydrocarbons propane and butane

For precise spectroscopic transmission measurements of gases and liquids under demanding process conditions, Hellma has two products in its portfolio that, owing to their robust design, can be used at high pressures and temperatures.

Due to the use of robust sapphire windows and welded metal seals, they provide an extremely robust and durable seal. They thus provide a high level of fail-safety, reliable measurement results and are also maintenance-free.

With the robust stainless steel Excalibur HD FCP measurement cell, the process flow can be measured via a bypass.

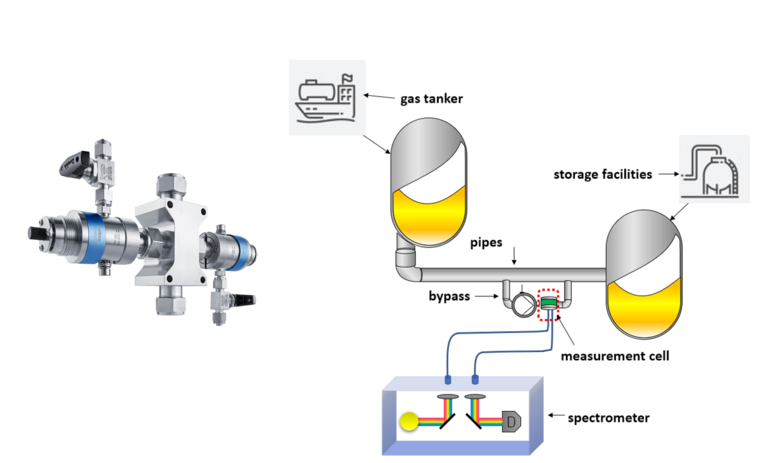

»Excalibur HD FCP« measurement cell and schematic scetch of a process integration

This optical flange measurement cell Excalibur HD Flange from Hellma consists of two optics which, combined with a central part, result in a flow cell. This compact measurement cell can be safely integrated into an existing system with little effort. For larger media flows larger diameter flanges are possible.

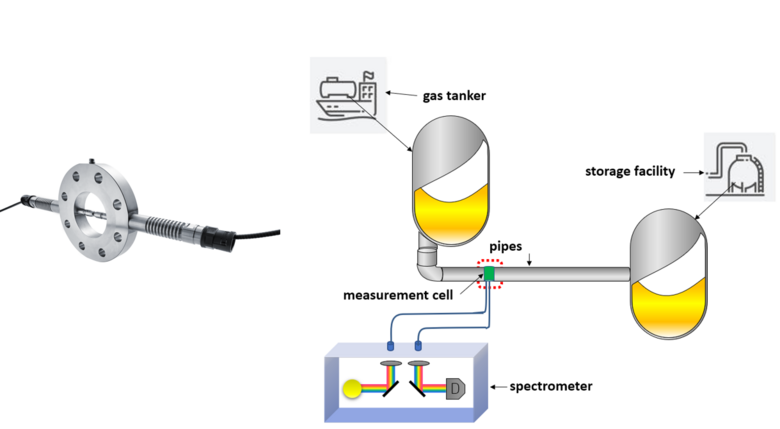

»Excalibur HD Flange« measurement cell and schematic scetch of a process integration

The Benefit

Using spectroscopic inline measurement technology, the composition as well as quality of liquids and gases can be determined directly in the process stream.

The robust measurement cells offer a reliable, fail-safe way to obtain precise measurement results in real time and thus contribute to optimizing and improving the safety of the process.
