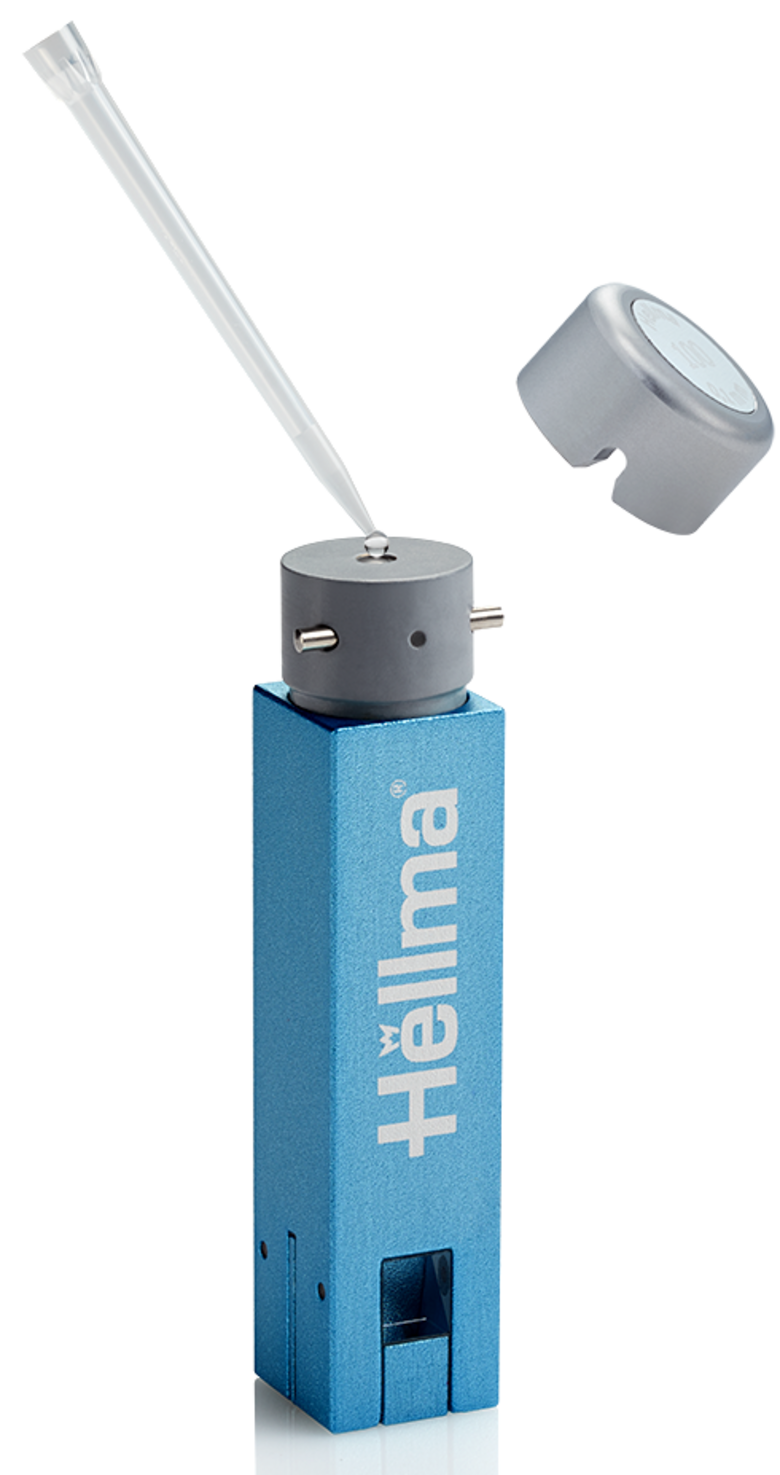

TrayCell 2.0 Product Details

High quality UV / VIS spectroscopy accessories

TrayCell 2.0 Product features

  • Strictly defined, precise path lengths: misadjustment impossible
  • Path lengths in delivery included: 1.0 mm and/or 0.2 mm
  • Additional path lengths: 2.0 mm and 0.1 mm (optional available)
  • Large measuring range from approx. 6 – 8,500 ng/μl (dsDNA) and approx. 0.1 – 100 mg/ml (protein)
  • Compact design: overall height including lid 61.5 mm (center height 8.5 mm)
  • Samples with low surface tension can be measured
  • Excellent reproducibility
  • Quick and easy to clean
  • Suitable for all current spectrophotometers with standard cuvette holder

Technical specifications TrayCell 2.0

TYPE 105.830-UVS
Product No.  105830-A3-V1-40 105830-A1-V1-40 105830-A2-V1-40
Path length* 0.2 mm (factor 50)
1.0 mm (factor 10)
1.0 mm ( factor 10) 0.2 mm (factor 50)
Window material High Performance Quartz Glass
Width x depth 12.5 mm x12.5 mm
Height** 61.5 mm (center height 8.5 mm)
68 mm (center height 15 mm)
73 mm (center height 20 mm)
Volume 0.7 µl - 10 µl
Max. temperature 50°C
Center height*** 8.5mm, 15mm or 20mm
Fiber optics built in not exchangeable, low solarization 210 nm - 1,100 nm

*   Path length = path length accuracy */- 0.02 mm, factor = dilution factor compared to a 10 mm cuvette
**  Height = Total height including cap
***The center height can be adjusted using the adapters supplied

Request this article



TrayCell 2.0 Accessories

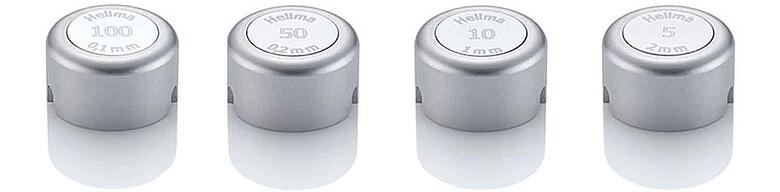

TrayCell 2.0 cap made of stainless steel with integrated Quartz glass mirror with an aluminum mirror coating



TYPE 665-1016
Product No. 665-1016-0.1-40 665-1016-0.2-40 665-1016-1-40 665-1016-2-40
Path length* 0.1 mm, factor 100 0.2 mm, factor 50 1.0 mm, factor 10 2.0 mm, factor 5
Description Cap made of stainless steel with an integrated mirror made of quartz glass with an aluminum mirror layer
Window material High Performance Quartz Glass

*Path length = path length accuracy +/- 0.02 mm, factor = dilution factor compared to a 10 mm cuvette

Request this article

Do you have any further questions about the TrayCell 2.0?

Then please have a look at our FAQs: There we answer frequently asked questions from customers.
