Product presentation TrayCell 2.0

High quality UV / VIS spectroscopy accessories

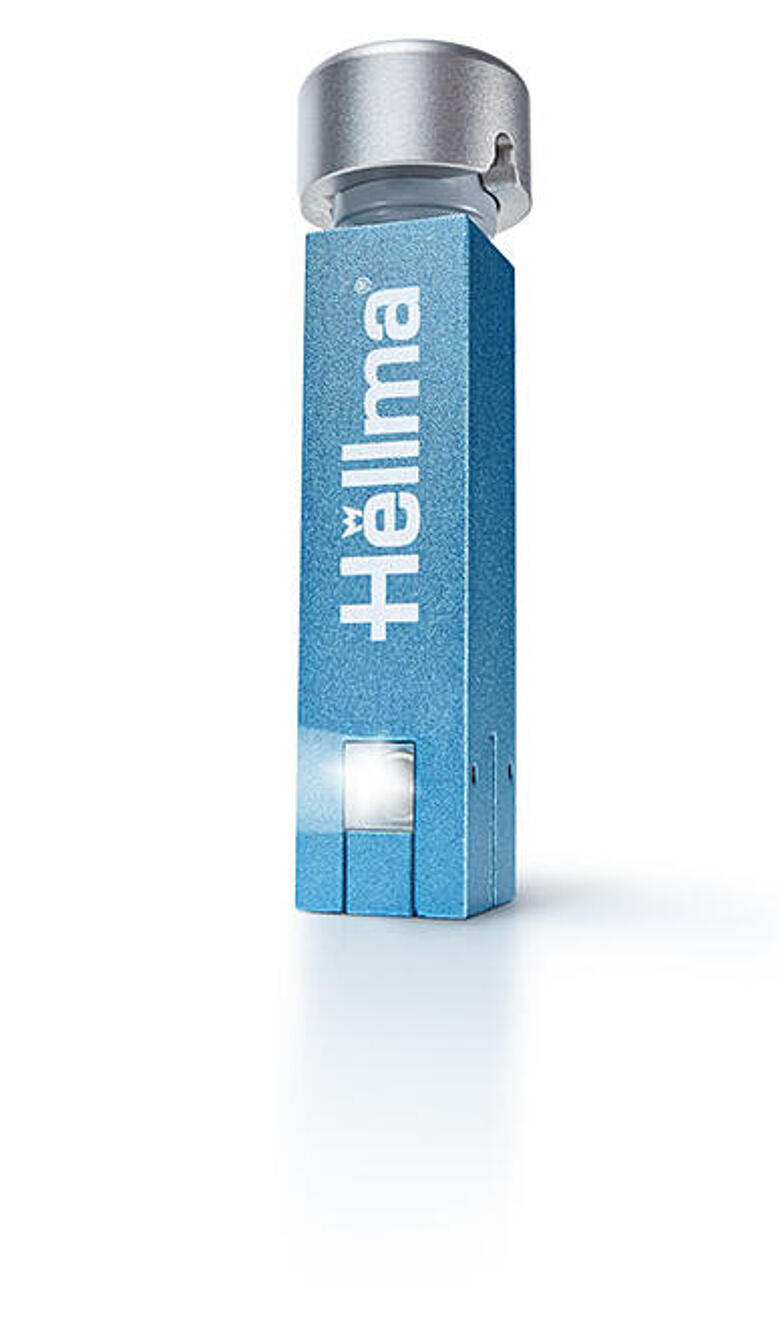

The New TrayCell 2.0

Innovative Solution for the UV/Vis based DNA and Protein Analysis

TrayCell 2.0 is a further development of Hellma’s successful ultra-micro sample-volume spectrometer cell TrayCell®.


High-tech on the smallest scale – this is what the TrayCell 2.0 has to offer

  • Easy handling – TrayCell 2.0 always stays in the cell holder
  • Excellent reproducibility of the measurement results
  • Suitable for almost all standard UV/Vis spectrometers
  • For sample volumes from 0.7 μl to 10 μl
  • Also suitable for samples with low surface tension
  • Different path lengths by means of exchangeable lids
  • Long-term precise measurement results without follow-up and maintenance costs

TrayCell 2.0 | Innovative Solution for the UV/Vis Based DNA & Protein Analysis

Product improvements – this is NEW with the TrayCell 2.0

  • Measurement of samples with low surface tension now possible due to  a deepened measuring window
  • Samples remain in droplet shape and can simply be pipetted off and be reused.
  • The new, PTFE-coated metal head makes the TrayCell 2.0 much more robust, facilitates cleaning and enables a particularly simple and fast sample change
  • A new lid with a higher rim improves the handling


  • Purity and concentration determination of proteins
  • DNA / RNA purity and assay
  • All spectrophotometric microvolume measurements (0.7 μl-10 μl) in the UV / Vis range

Here you can download a helpful Excel tool, with which you can calculate the concentrations of nucleic acids and proteins!

TrayCell 2.0 – Calculation of concentration (Tool EN)


Thank you very much for your interest in our download of "TrayCell 2.0 – Calculation of concentration (Tool EN)". Please fill in the form below and we will send you the requested link to the given e-mail address.

Note: Your data will of course be treated confidentially and will not be shared with third parties. You can revoke your consent at any time by clicking on the end of each e-mail.
Required Field

Products of the brand:

TrayCell 2.0 (User Manual & Broschure EN / DE)


Agilent Application Note: Concentration Analysis of Ultra-microvolume Samples by UV-Vis Spectroscopy with the Hellma TrayCell
